Up Close : 880GM-USB3L
Lets take a closer look at the motherboard itself.

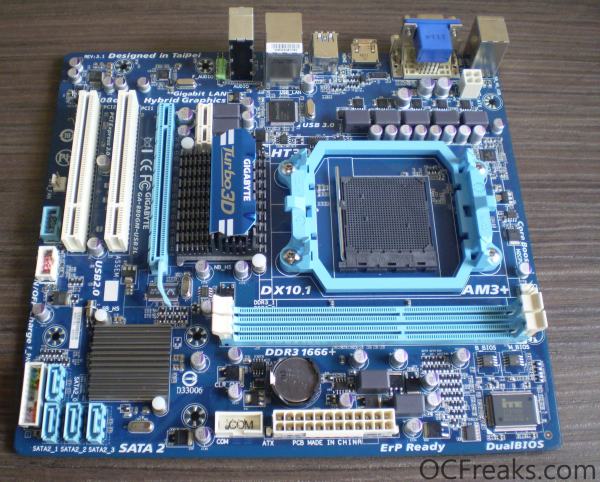

The board:
Rear I/O:
Bundled Accessories
As with other boards in this price range , 880GM-USB3L doesn’t come with much accessories. The bundled items include:
- Manual
- Driver DVD
- 2x Blue Sata Connectors
- Rear I/O Shield
- Multilanguage Installation Guide
Expansion Slots
Right below the Northbridge the motherboard has got 4 expansion slots:
- PCIE – x1
- PCIE – x16
- PCI (1)
- PCI (2)
The northbridge heatsink wont hinder the installation of a “longer in length” PCI x1 card since the heatsink area behind the x1 slot is a bit lower than the PCIE x1 connector.As the CPU socket color sigifies this motherboard supports AM3+ CPUS. This board has got a 4+1 phase for CPU Power which seems decent for CPUs like Athlon X4 considering the fact the the MOSFETS are naked without heatsink and has a 4-PIN connector for CPU power. This mobo seems to best fit with low to medium power consuming CPUs and I won’t recommend using a high power consuming CPU with this mobo unless you’ve got a decent heatsink on the MOSFETs and even if you have then overclocking high wattage CPU might be a nightmare!
VRMs:
The 880G Northbridge:
The SB710 Southbridge:
Rear I/O:
The rear I/O connectors are :
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 4 x USB 2.0/1.1 ports
- 2 x USB 3.0/2.0 ports
- 1 x RJ-45 port
- 3 x audio jacks(Line In/Line Out/Microphone)
Specification
Now I’ll quickly go through other specs as mentioned on the motherboard’s product page:
Audio:
- Realtek ALC889 codec
- High Definition Audio
- 2/4/5.1/7.1-channel (Note 4)
- Support for S/PDIF Out
Lan:
- 1 x Realtek 8111E chip (10/100/1000 Mbit)
Storage Support:
- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
- Support for SATA RAID 0, RAID 1, RAID 10, and JBOD
Internal I/O Connectors:
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 2 x USB 2.0/1.1 headers
- 1 x serial port header
- 1 x clearing CMOS jumper

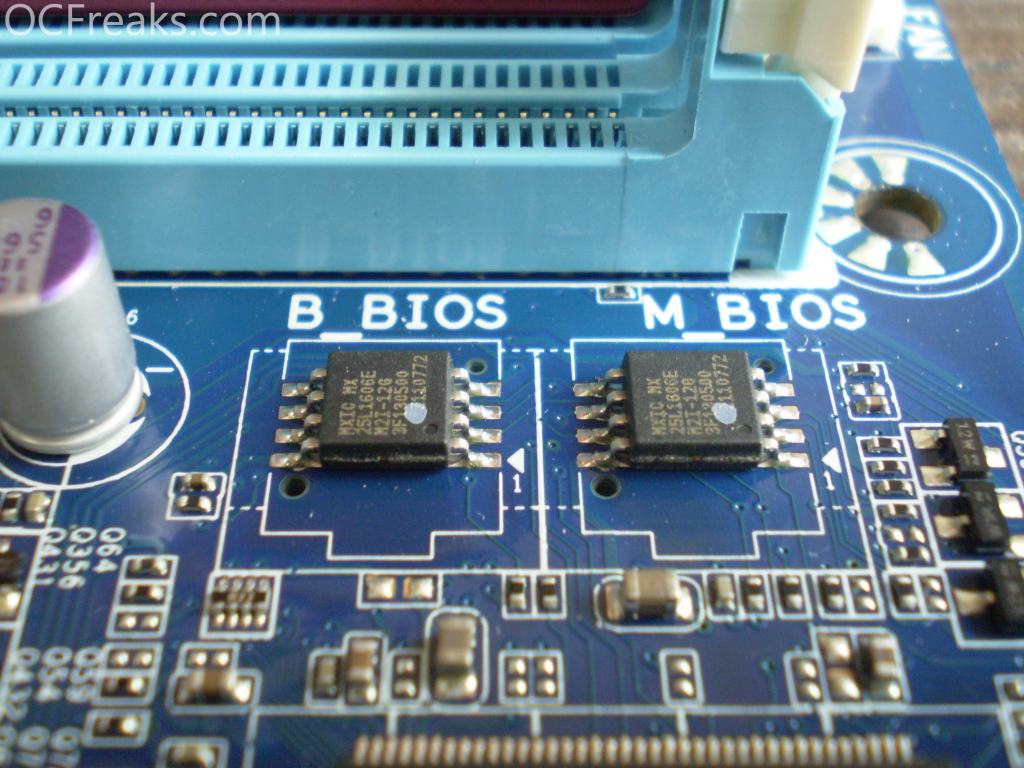

BIOS:
- 2 x 16 Mbit flash
- Use of licensed AWARD BIOS
- Support for DualBIOS™
